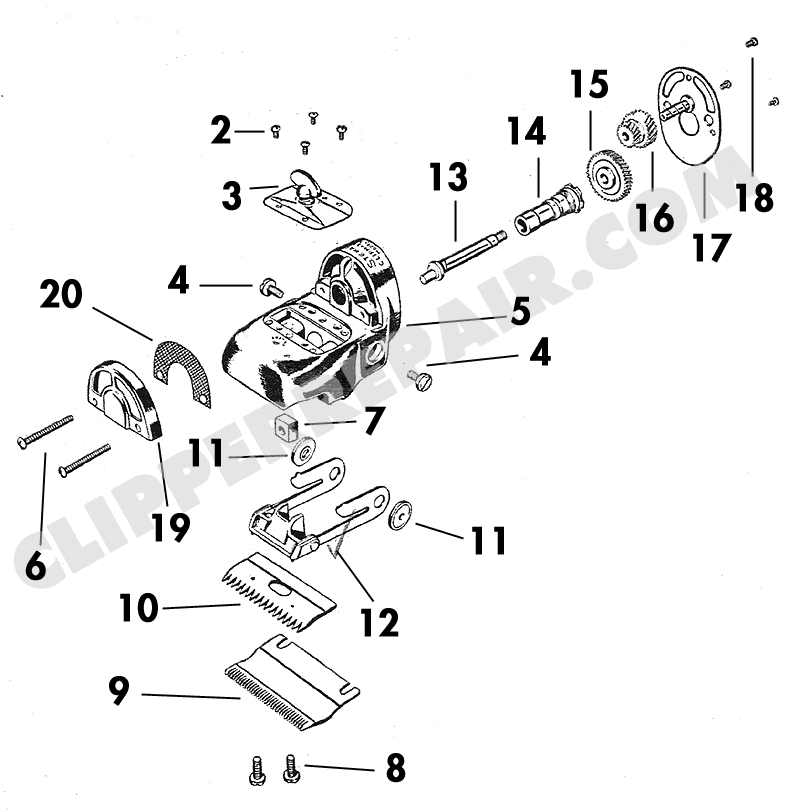

Replacement Parts for Stewart Sunbeam Model 51 (51)
51- 02
(Diag. #2) Tension Plate Screw
$1.04
51- 03
(Diag. #3) Tension Plate Assembly (New Style)
$14.97
51- 04
(Diag. #4) Head spring Screw
$2.09
51- 05
(Diag. #5) Head Housing
$32.81
51- 06
(Diag. #6) Head Mounting Screw
$1.04
51- 07
(Diag. #7) Slide Block
$1.83
51- 08
(Diag. #8) Blade Screw
$2.09
51- 09
(Diag. #9) Bottom Blade
$20.24
51- 10
(Diag. #10) Top Blade
$15.58
51- 11
(Diag. #11) Spacer Washer
$1.83
51- 12
(Diag. #12) Drive Yoke Assbly.
$28.67
51- 13
(Diag. #13) Crankshaft
$41.48
51- 14
(Diag. #14) Crankshaft Bushing
$25.62
51- 15
(Diag. #15) Crankshaft Gear
$19.68
51- 16
(Diag. #16) Intermediate Gear
$32.51
51- 17
(Diag. #17) Gear Case Cover
$7.56
51- 18
(Diag. #18) Gear Case Cover Screw
$1.04
51- 19
(Diag. #19) Front Screen Frame
$4.07
51- 20
(Diag. #20) Front Screen
$1.58

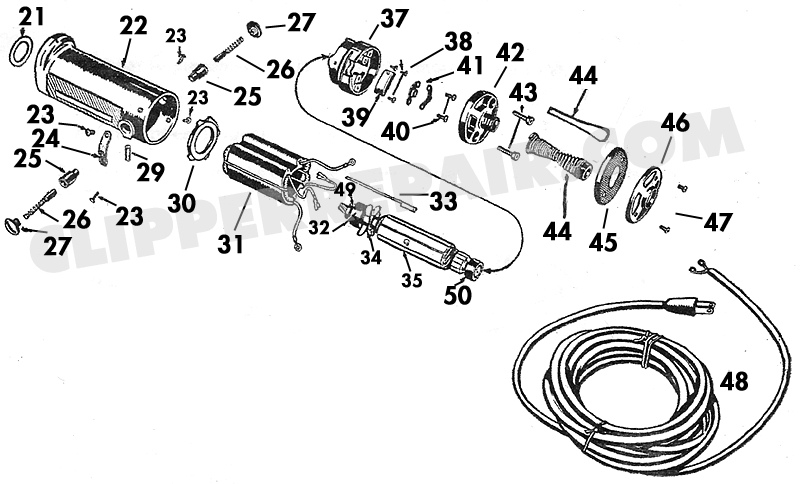

51- 21
(Diag. #21) Fiber Washer
Out of Stock
51- 22A
(Diag. #22) Motor Housing(New)
$68.25
51- 22
(Diag. #22) Motor Housing(Used)
$47.25
51- 23
(Diag. #23) Housing Screw
$1.04
51-24
(Diag. #24) Rating Plate
$1.58
51- 25
(Diag. #25) Brush Holder (Temporarily
Out of Stock
51- 26
(Diag. #26) Brush and Spring
$5.94
51- 27
(Diag. #27) Brush Cap
$6.83
51- 29
(Diag. #29) Set Screw- Brush Holder
$1.04
51- 30
(Diag. #30) Baffle
$1.97
51- 31
(Diag. #31) Field Assbly.(w/ exchange)
$122.85
51- 31A
(Diag. #31) Field Assbly.(with/o exchange)
$133.35
51- 32
(Diag. #32) Oil Slinger
$2.37
51- 33
(Diag. #33) Field Locating Key
$2.30
51- 34
(Diag. #34) Fan Assbly.
$13.13
51- 35
(Diag. #35) Armature(w/ exchange)- No Bearings
$175.35
51- 35A
(Diag. #35) Armature(w/o exchange)- No Bearings
$185.85
51- 37
(Diag. #37) Bearing Housing
Out of Stock
51- 38
(Diag. #38) Terminal Screw
$1.04
51- 39
(Diag. #39) Switch Knob - (Good Used Only)
$1.64
51- 40
(Diag. #40) Cord Clamp Screw
$1.04
51- 41
(Diag. #41) Cord Clamp
$3.68
51- 42
(Diag. #42) Motor Cover
$8.21
51- 43
(Diag. #43) Motor Cover Screw
$2.50
51- 44
(Diag. #44) Cord Sleeve- Rubber
$5.25
51- 44A
(Diag. #44) Cord Sleeve- Spring w/bushing
$7.88
51- 45
(Diag. #45) Rear Screen (Temporarily
Out of Stock
51- 46
(Diag. #46) Rear Screen Cover
$1.64
51- 47
(Diag. #47) Rear Screen Cover Screw
$1.04
51- 48
(Diag. #48) Cord/Plug Assbly.
$23.89
51- 49
(Diag. #49) Front Armature Bearing
$21.86
51- 50
(Diag. #50) Rear Armature Bearing
$21.86
