Replacement Parts for Oster Showmaster (78153-013)

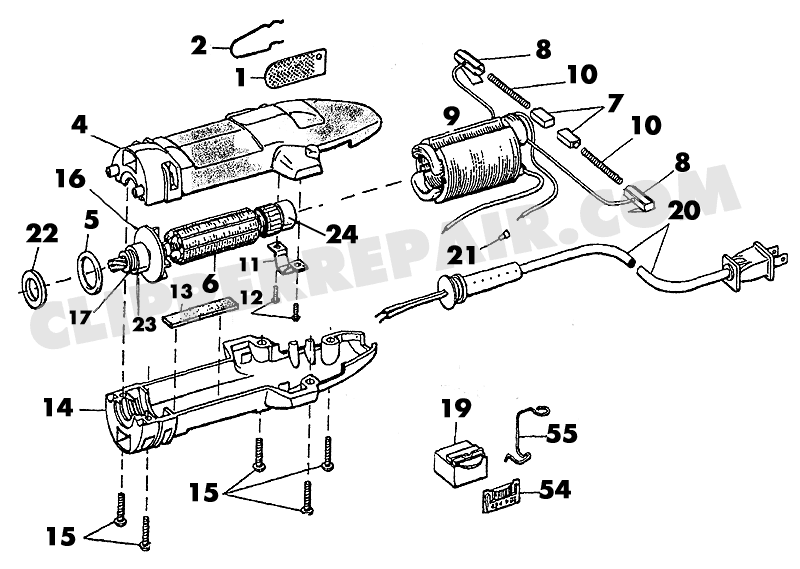

Oster Showmaster diagram 1 of 3
45538
(Diag. #1) Screen
$1.04
42899
(Diag. #2) Retaining Clip
$2.61
192797
(Diag. #4) Upper & Lower Housing (Blue)
$40.87
121463
(Diag. #4) Upper & Lower Housing (Gold)
Out of Stock
121464
(Diag. #4) Upper & Lower Housing (Silver)
$88.68
42891
(Diag. #5) O-Ring for Bearing
$1.04
105698
(Diag. #6) Armature Asmbly.
Out of Stock
42435
(Diag. #7) Brush
$3.14
58379
(Diag. #8) Brush Tube
$2.61
58387
(Diag. #9) Field Assembly
$75.01
42894
(Diag. #10) Brush Spring
$1.04
42892
(Diag. #11) Bearing Retainer
$1.04
42186
(Diag. #12) Screw- Bearing Retainer
$1.04
58404
(Diag. #13) Foam Pad
$1.56
121463-000-005
(Diag. #14) Upper & Lower Housing (Gold)
Out of Stock
42109
(Diag. #15) Screw- Housing
$1.04
103076
(Diag. #16) Armature Fan
$6.28
45578
(Diag. #17) Oil Slinger
$2.37
55728
(Diag. #19) Vari.Spd. Switch-610 Gold Clipper
$28.60
110735
(Diag. #20) Cord Set
$20.73
55136
(Diag. #21) Connector- Cord
$0.32
45591
(Diag. #22) Washer- Rubber Sealing
$1.04
42889
(Diag. #23) Front Armature Bearing
$21.86
42890
(Diag. #24) Rear Armature Bearing
$21.86
42110
(Diag. #25) Screw- Head Housing (Large)
$1.04
42187
(Diag. #26) Comb Screw
$2.75
42445
(Diag. #27) Nut- Tension Pin Spring Screw
$1.04
42883
(Diag. #28) Intermediate Gear Assbly
$32.51
44910
(Diag. #29) Crankshaft Gear
$19.68
44911-005
(Diag. #30) Gear Case Cover
$7.56
44915
(Diag. #31) Screw- Gear Case Cover
$1.04
44916
(Diag. #32) Tension Pin
$6.11
44917-005
(Diag. #33) Cover- Head Housing
$77.55
44924-005
(Diag. #34) Fork
$86.37
44923-005
(Diag. #34) Fork Assbly. Complete w/ Yokes
$139.13
44926
(Diag. #35) Right Yoke
$23.33
44927
(Diag. #36) Left Yoke
$23.33
44993
(Diag. #37) Gear Insulator
$2.61
45503
(Diag. #38) Retaining Spring- Yokes - FOR 3 INCH HEAD ONLY
$3.23
55677
(Diag. #39) Crank Roller
$14.72
55680
(Diag. #40) Tension Nut
$16.51
55681
(Diag. #41) Tension Spring
$1.05
55688
(Diag. #42) Tension Cup Nut
$5.65
55689
(Diag. #43) Retaining Spring- Tension Pin
$1.56
103723
(Diag. #44) Crankshaft
$30.87
2098560
(Diag. #45) Grease Plug
$2.46
104397-005
(Diag. #46) Lower Housing
$105.59
42106-010
(Diag. #47) Screw-Tension Pin Spring
$1.04
42109-005
(Diag. #48) Screw- Head Housing (Small)
$1.04
42139
(Diag. #49) Screw- Head to Motor
$1.04
55687-001
(Diag. #50) Fulcrum Pin
$2.21
55678
(Diag. #51) Fulcrum Seat
$5.15
OS-005
(Diag. #52) Crankshaft Bushing Needle Bearing
$10.25
55696
(Diag. #53) Threaded Bushing
$27.81
55721
(Diag. #54) Switch Cover-610 Gold Clipper
$2.33
55723
(Diag. #55) Retaining Clip-610 Gold Clipper
$5.08
192926
(Diag. #56) Complete motor assembly Variable Speed (No Head) *See Note
$257.59
78153-313
(Diag. #57) Shear Head Complete (No Blades)
$267.42
