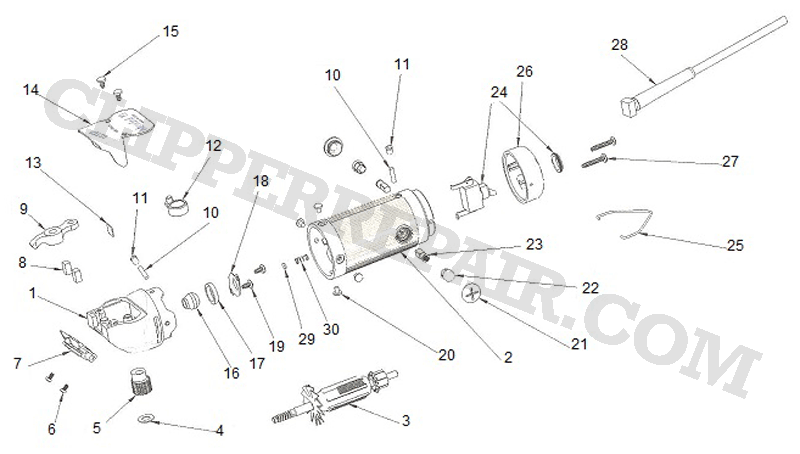

Replacement Parts for Oster Model 10 Limited Edition (New Style) (76010-100)
170903
(Diag. #1) Housing Assembly - Head
$39.69
170902
(Diag. #2) Housing - Motor (Includes Fields)
Out of Stock
152776
(Diag. #3) Armature
$62.48
58543
(Diag. #4) Thrust Washer- Gear
$0.32
105520
(Diag. #5) Gear
$20.22
157245
(Diag. #6) Screw - Hinge
$3.15
42575
(Diag. #7) Hinge Assy.
$7.75
41723
(Diag. #8) Lever Grease Seal
$0.38
44946-005
(Diag. #9) Lever
$3.11
42563
(Diag. #10) Oil Wick
$1.04
41676
(Diag. #11) Oiler
$3.14
45515
(Diag. #12) Link
$2.23
42566
(Diag. #13) Thrust Plate
$0.32
156391
(Diag. #14) Badge / Gear Cover
$9.44
42114-020
(Diag. #15) Screw- Field Plate
$1.04
57070
(Diag. #16) Bearing
$1.06
42568
(Diag. #17) Washer-Felt
$1.04
58519
(Diag. #18) Bearing Retainer
$1.04
42114-040
(Diag. #19) Screw - Bearing Retainer
$1.04
163807
(Diag. #20) Screw - Motor Housing
$1.04
58417
(Diag. #21) Brush Cap
$5.64
42614
(Diag. #22) Brush Retainer Assbly
$2.04
42584-025
(Diag. #23) Brush & Spring Assbly(1pr.)
$4.43
157241
(Diag. #24) Switch Only (No Nut)
$15.75
42573
(Diag. #25) Bale
$1.79
152780
(Diag. #26) Cap - End / Switch
$10.20
156546
(Diag. #28) Power Cord- 10 Foot
$10.46
42541
(Diag. #29) Thrust Slug
$2.09
157244
(Diag. #30) Spring - Lower Bearing
$2.09
45588
(Diag. #31) Blade Guard (Not Shown)
$1.83
