Replacement Parts for Liscop Equi-Clip 1600 (1600)
19 3030101
(Diag. #1) Adjusting Screw
$3.78
19 3030102
(Diag. #2) Clipping Head Housing
$71.19
19 3030103
(Diag. #3) Pressure Bolt
$1.40
19 3012014
(Diag. #4) Tension Spring
$0.89
19 3030105
(Diag. #5) Sliding Bolts Support
$9.45
19 3030106
(Diag. #6) Sling Bolts
$1.79
19 3030107
(Diag. #7) Eccentric Block
$6.72
19 3030108
(Diag. #8) Eccentric
$20.48
19 3030109
(Diag. #9) Carrier (Yoke)
$47.51
19 030523
(Diag. #12) Blade Screw
$3.05
19 3030113
(Diag. #13) Yoke Screw
$1.31
9.00E+13
(Diag. #14) Screw for hand protection
$0.42
19 3030115
(Diag. #15) Hand protection
$1.10
19 3030117
(Diag. #17) Oscillating Spring, Right
$5.25
19 3030118
(Diag. #18) Oscillating Spring, Left
$5.25
19 3030119
(Diag. #19) Gear Cover Plate
$0.89
19 3030127
(Diag. #20) Spur Gear with Shaft
$35.28
9.04E+12
(Diag. #23) Screw M3,5 x 13 (2 pieces)
$0.53
9.04E+13
(Diag. #27) Screw 4 x 21
$0.74
19 3030104
(Diag. #30) Nut
$0.89

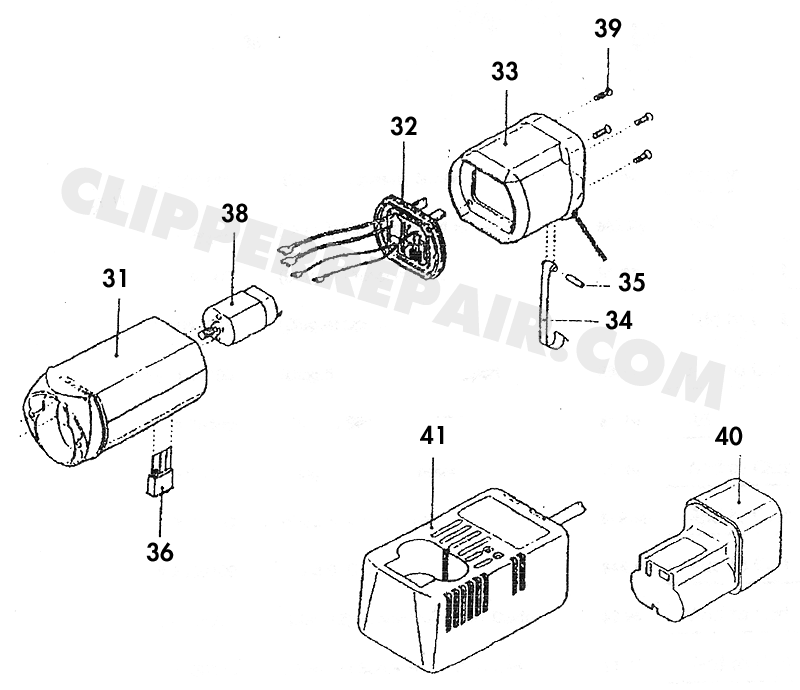

19 0401201
(Diag. #31) Motor Housing, Green
$14.18
19 0401202
(Diag. #32) Connection Plate, Compl.
$18.38
19 0401203
(Diag. #33) Connection Housing, Green
$14.07
19 0401204
(Diag. #34) Metal Clamp Compl. w/Brush
$12.39
9.00E+12
(Diag. #35) Fastening Pin for Metal Clamp
$1.58
19 0401206
(Diag. #36) On-Off Switch 7.2 V DC
$17.64
19 0101208
(Diag. #38) Motor Compl. 7.2 V DC w/Cogwheel
$84.74
