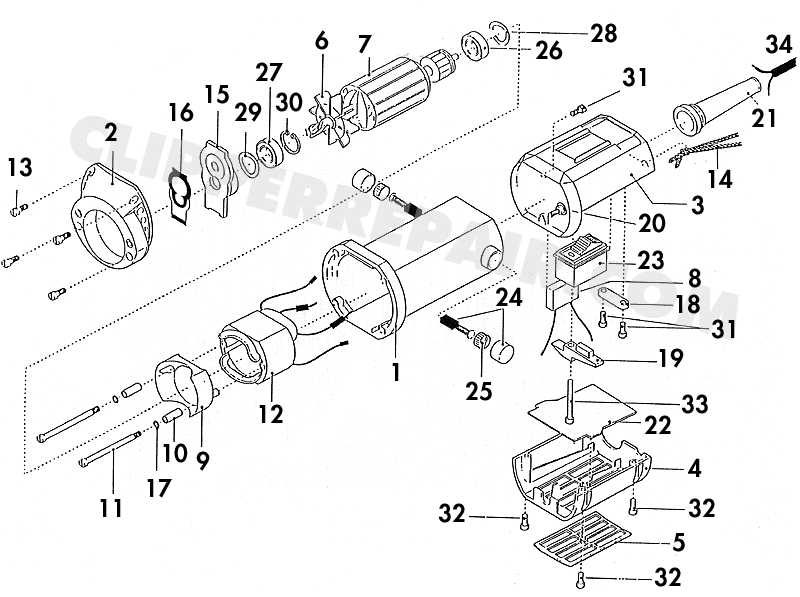

Replacement Parts for Andis Handy Clipper (68010)
701-801
(Diag. #1) Motor Housing
$48.45
701-803
(Diag. #2) Gear Box
$15.96
701-805
(Diag. #3) Switch housing
$19.95
701-807
(Diag. #5) Air Filter
$13.39
701-808
(Diag. #6) Armature Fan
$5.86
701-838
(Diag. #7) Rotor (Armature)
$247.97
701-812
(Diag. #8) Capacitor
$12.16
701-817
(Diag. #9) Air Stream Leading Piece
$7.20
701-818
(Diag. #10) Distance Brush
$1.09
701-820
(Diag. #11) Fillister Head Screw- Fields
$0.74
701-839
(Diag. #12) Stator (Fields)
$101.91
701-824
(Diag. #13) Fillister Head Screw- Gearbox
$0.46
701-825
(Diag. #14) Nylon Cord
$11.80
701-610
(Diag. #15) Centering Piece
$17.12
701-612
(Diag. #16) Seal
$10.65
701-616
(Diag. #17) Washer- Field Screw
$0.74
701-671
(Diag. #18) Cable Grip
$1.66
701-619
(Diag. #19) Switch Grip
$1.89
701-621
(Diag. #20) Retaining Screw- Switch Housing
$2.25
712-111
(Diag. #21) Cable Sleeve
$5.00
701-627
(Diag. #22) Dust Cover
$4.87
701-631
(Diag. #23) Main Switch
$28.27
701-633
(Diag. #24) Brush/Spring/Protection Cap (SET OF TWO)
$19.34
701-634
(Diag. #25) Brush Cap
$1.72
701-635
(Diag. #26) Ball Bearing
$15.25
701-636
(Diag. #27) Ball Bearing
$14.41
701-637
(Diag. #28) Spring Disc
$1.26
701-638
(Diag. #29) Spring Disc
$1.26
701-639
(Diag. #30) Circlip (Retaining Ring)
$0.90
701-640
(Diag. #31) Screw- Switch Hsg./Cable Grip
$0.65
701-641
(Diag. #32) Screw- Air Filter/Switch Hsg.
$0.46
701-642
(Diag. #33) Screw- Switch Grip
$2.88
701-679
(Diag. #34) Cable with Plug- Original Equip.
$44.79

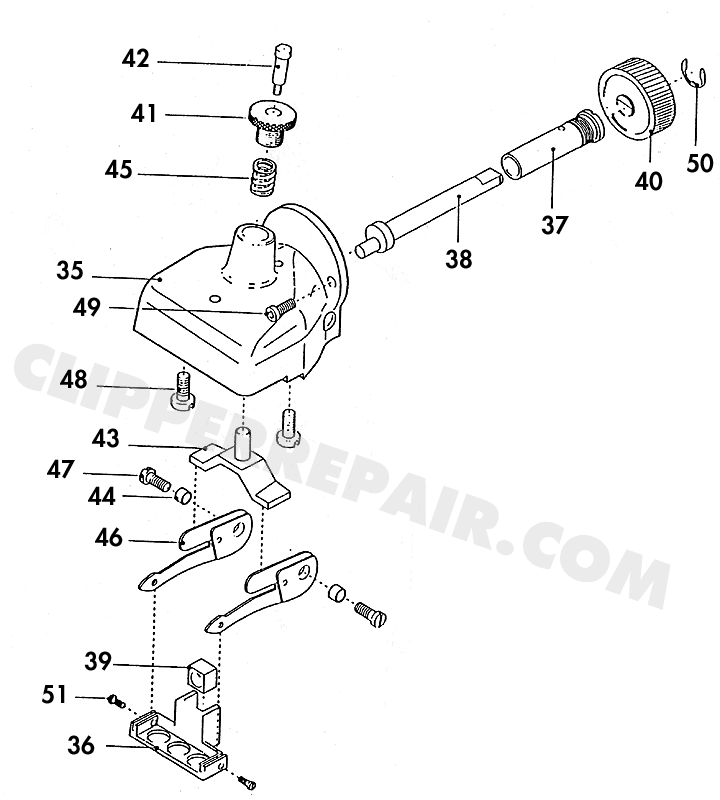

706-501
(Diag. #35) Clipper Head Casing
$113.51
706-503
(Diag. #36) Cutter Driving Carrier (Yoke)
$71.40
706-505
(Diag. #37) Crank Spindle Sleeve
$18.90
706-506
(Diag. #38) Crank Spindle (Crankshaft)
$16.91
706-507
(Diag. #39) Crank Drive Block
$7.25
701-830
(Diag. #40) Cog / Gear
$29.36
706-509
(Diag. #41) Tension Screw
$11.03
706-510
(Diag. #42) Distance Screw
$5.25
706-511
(Diag. #43) Pressure Plate
$9.11
706-514
(Diag. #44) Centering Ring- Head Springs
$2.10
706-517
(Diag. #45) Spiral Spring
$2.84
706-518
(Diag. #46) Laminated Springs
$14.93
706-520
(Diag. #47) Screw- Head Spring
$1.06
706-521
(Diag. #48) Blade Screw
$1.47
706-523
(Diag. #49) Screw- Head to Motor
$1.53
706-524
(Diag. #50) Circlip Benzing (E-Clip)
$1.70
706-525
(Diag. #51) Screw- Drive Yoke
$1.70
