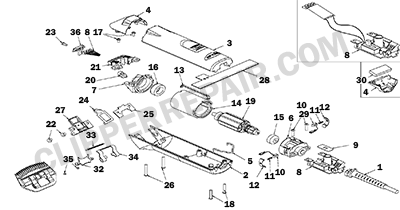

Replacement Parts for Andis (BGCL) Head Light Clipper (63790)
26049
(Diag. #1) Cord Set
$12.29
23222
(Diag. #2) Lower Housing
$3.95
60077
(Diag. #3) Upper Housing
$6.09
22267
(Diag. #5) Hanger Bail
$0.57
64945
(Diag. #6) Rear Motor Frame
$6.28
65013
(Diag. #7) Front Motor Frame
$10.35
22514
(Diag. #8) Speed Control/Light Assembly(Not Available)
$26.99
21063
(Diag. #9) Insulator- Switch
$0.50
27847
(Diag. #10) Brush with shunt
$2.61
65806
(Diag. #11) Brush Spring
$0.29
65805
(Diag. #12) Brush Retaining Clip
$0.44
27198
(Diag. #13) Motor Frame Clip
$0.44
27352
(Diag. #14) Field Assembly
$39.08
21067
(Diag. #15) Small Bearing Cup
$0.34
21068
(Diag. #16) Bearing Cup - Large
$0.34
15766
(Diag. #17) Blade Drive Screw
$0.34
22086
(Diag. #18) Rear Mounting Screw (Short)
$0.48
21977
(Diag. #19) Armature Assembly
$65.73
27854
(Diag. #20) Plastic Cam & Bearing Assembly
$25.85
27864
(Diag. #22) Blade Hinge Screw
$0.34
23232
(Diag. #23) Screw - LED Holder
$0.48
64537
(Diag. #24) Blade Lock / Latch
$1.76
64535
(Diag. #25) Lock Keeper
$1.39
64606
(Diag. #26) Front Housing Screw (Long)
$0.36
S63897
(Diag. #27) Hinge Assembly
$22.05
60083
(Diag. #28) Oil Seal
$0.96
17091
(Diag. #30) Self-Adhesive Foam Pad - Drive Cap (Not Shown)
$0.95
64003
(Diag. #32) Blade Bracket / Socket
$1.85
64027
(Diag. #33) Guide - Blade
$0.25
64013
(Diag. #34) Tension Spring
$1.47
64139
(Diag. #35) Screw - Blade (2 Required)
$0.69
23131
(Diag. #36) LED Holder
$3.74
