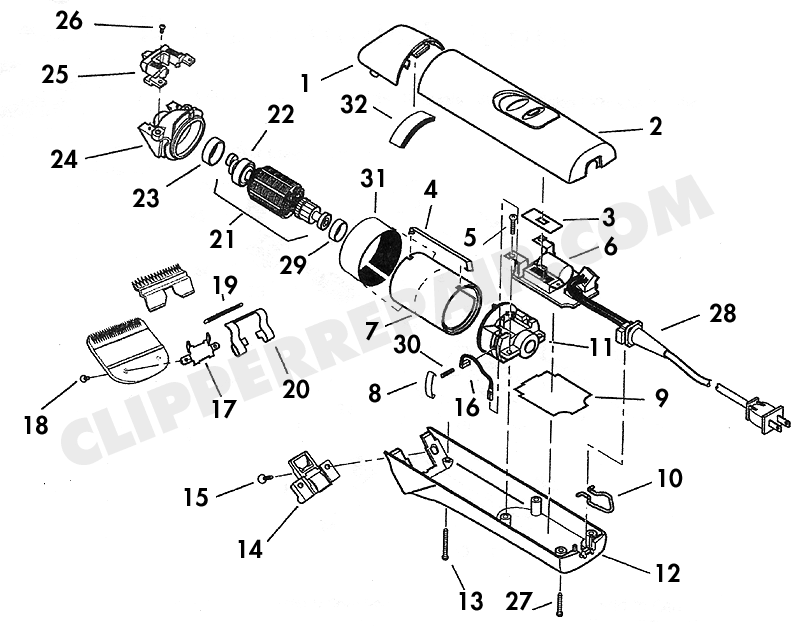

Replacement Parts for Andis (BGC) Excel 2 Speed Clipper (22315)
68362
(Diag. #1) Drive Cap- Black
$9.37
22545-02
(Diag. #2) Housing - Lower
$6.62
23835-02
(Diag. #2) Housing - Upper
$11.97
22350-02
(Diag. #2) Housing - Upper (Black) Still Available
$11.97
22340-02A
(Diag. #2) Housing - Upper (Black) Still Available
$15.23
22405-02
(Diag. #2) Housing Upper
$11.03
22585-02
(Diag. #2) Housing Upper
$11.03
22962
(Diag. #2) Upper Housing Assbly- Black(Does not come with switch button
$12.87
21063
(Diag. #3) Insulator- Switch
$0.50
27198
(Diag. #4) Motor Frame Clip
$0.44
63210-05C
(Diag. #5) Brush Retainer Clip (2 Required) - Motor
$0.44
65410-05C
(Diag. #5) Brush Retainer Clip (2 Required) - Motor
$0.44
65410-05B
(Diag. #5) Brush Spring (2 Required) - Motor
$0.29
63210-05B
(Diag. #5) Brush Spring (2 Required) - Motor
$0.29
65410-05A
(Diag. #5) Brush with Wire (2 Required) - Motor
$1.83
63210-05A
(Diag. #5) Brush with Wire (2 Required) - Motor
$1.83
65828
(Diag. #5) Screw- Switch Assbly.
$0.34
22681
(Diag. #6) Switch & Circuit Board Assbly
$21.40
27352
(Diag. #7) Field Assembly
$39.08
65805
(Diag. #8) Brush Retaining Clip
$0.44
22267
(Diag. #10) Hanger Bail
$0.57
64945
(Diag. #11) Rear Motor Frame
$6.28
22545-12
(Diag. #12) Housing - Lower
$6.62
22405-12
(Diag. #12) Housing - Lower
$6.62
22852
(Diag. #12) Lower Housing- Black
$7.62
64606
(Diag. #13) Front Housing Screw (Long)
$0.36
28194
(Diag. #14) Hinge Assy- Oster 76,89 Compatible
$21.00
27864
(Diag. #15) Blade Hinge Screw
$0.34
27847
(Diag. #16) Brush with shunt
$2.61
64003
(Diag. #17) Blade Bracket / Socket
$1.85
64139
(Diag. #18) Screw - Blade (2 Required)
$0.69
64027
(Diag. #19) Guide - Blade
$0.25
64013
(Diag. #20) Tension Spring
$1.47
21977
(Diag. #21) Armature Assembly
$65.73
27854
(Diag. #22) Plastic Cam & Bearing Assembly
$25.85
21068
(Diag. #23) Bearing Cup - Large
$0.34
65013
(Diag. #24) Front Motor Frame
$10.35
15766
(Diag. #26) Blade Drive Screw
$0.34
22086
(Diag. #27) Rear Mounting Screw (Short)
$0.48
26049
(Diag. #28) Cord Set
$12.29
21067
(Diag. #29) Small Bearing Cup
$0.34
65806
(Diag. #30) Brush Spring
$0.29
60083
(Diag. #31) Oil Seal
$0.96
17091
(Diag. #32) Self-Adhesive Foam Pad - Drive Cap
$0.95
