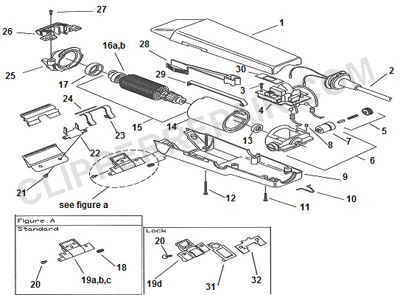

Replacement Parts for Andis (BG2) Clipper (22240, 22270)
21164
(Diag. #2) Cord Set
$9.39
65828
(Diag. #3) Screw- Switch Assbly.
$0.34
20024
(Diag. #4) Speed Control (Switch)
$26.57
21812
(Diag. #5) Brush Repair Kit
$11.05
21766
(Diag. #6) Brush Housing Assembly / Rear Frame
$13.99
21011
(Diag. #7) Brush Holder
$5.59
21021
(Diag. #8) Set Screw
$0.44
22163
(Diag. #9) Lower Housing
$4.85
25018
(Diag. #10) Hanger Bail
$0.71
21050
(Diag. #11) Rear Housing Screw (Short)
$0.50
21048
(Diag. #12) Front Housing Screw (Long)
$0.36
21067
(Diag. #13) Small Bearing Cup
$0.34
27352
(Diag. #14) Field Assembly
$39.08
21977
(Diag. #15) Armature Assembly
$65.73
27854
(Diag. #16) Plastic Cam & Bearing Assembly
$25.85
21068
(Diag. #17) Bearing Cup - Large
$0.34
21014
(Diag. #18) Blade Retaining Spring
$0.42
28194
(Diag. #19) Hinge Assy- Oster 76,89 Compatible
$21.00
27864
(Diag. #20) Blade Hinge Screw
$0.34
64139
(Diag. #21) Screw - Blade (2 Required)
$0.69
64003
(Diag. #22) Blade Bracket / Socket
$1.85
64013
(Diag. #23) Tension Spring
$1.47
64027
(Diag. #24) Guide - Blade
$0.25
69101
(Diag. #25) Front Motor Frame Assbly
$6.15
15766
(Diag. #27) Blade Drive Screw
$0.34
21452
(Diag. #28) Switch Actuating Arm
$3.11
27198
(Diag. #29) Motor Frame Clip
$0.44
21063
(Diag. #30) Insulator- Switch
$0.50
64537
(Diag. #31) Blade Lock / Latch
$1.76
64535
(Diag. #32) Lock Keeper
$1.39
60083
(Diag. #33) Oil Seal (Not Shown)
$0.96
