Replacement Parts for Oster Clipmaster Variable Speed (78150-013)

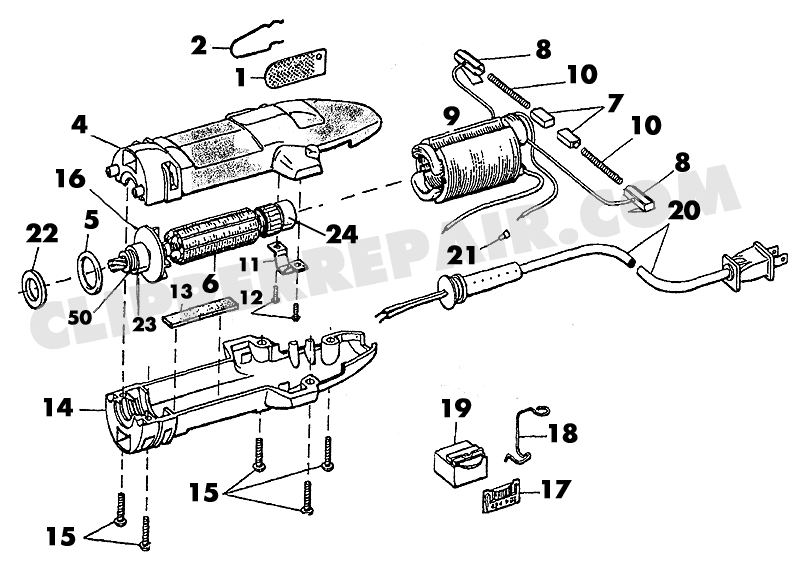

Oster Clipmaster Variable Speed diagram 1 of 3
45538
(Diag. #1) Screen
$1.04
42899
(Diag. #2) Retaining Clip
$2.61
192797
(Diag. #4) Upper & Lower Housing (Blue)
$40.87
121463
(Diag. #4) Upper & Lower Housing (Gold)
Out of Stock
42891
(Diag. #5) O-Ring for Bearing
$1.04
105698
(Diag. #6) Armature Asmbly.
Out of Stock
42435
(Diag. #7) Brush
$3.14
58379
(Diag. #8) Brush Tube
$2.61
58387
(Diag. #9) Field Assembly
$75.01
58457
(Diag. #9) Field Assembly 220volt
$70.48
42894
(Diag. #10) Brush Spring
$1.04
42892
(Diag. #11) Bearing Retainer
$1.04
42186
(Diag. #12) Screw- Bearing Retainer
$1.04
58404
(Diag. #13) Foam Pad
$1.56
121463-000-005
(Diag. #14) Upper & Lower Housing (Gold)
Out of Stock
121466
(Diag. #14) Upper and Lower Housing - (Blue)
$40.87
42109
(Diag. #15) Screw- Housing
$1.04
103076
(Diag. #16) Armature Fan
$6.28
55721
(Diag. #17) Switch Cover-610 Gold Clipper
$2.33
55723
(Diag. #18) Retaining Clip-610 Gold Clipper
$5.08
55728
(Diag. #19) Vari.Spd. Switch-610 Gold Clipper
$28.60
110735
(Diag. #20) Cord Set
$20.73
55136
(Diag. #21) Connector- Cord
$0.32
45591
(Diag. #22) Washer- Rubber Sealing
$1.04
42889
(Diag. #23) Front Armature Bearing
$21.86
42890
(Diag. #24) Rear Armature Bearing
$21.86
42883
(Diag. #25) Intermediate Gear Assbly
$32.51
44910
(Diag. #26) Crankshaft Gear
$19.68
44911-005
(Diag. #27) Gear Case Cover
$7.56
44915
(Diag. #28) Screw- Gear Case Cover
$1.04
44993
(Diag. #30) Gear Insulator
$2.61
55690
(Diag. #31) Shaft Bushing
$1.04
55702
(Diag. #32) Crankshaft Block
$1.83
55703
(Diag. #33) Spacer Washer- Head Spring
$1.83
55712-005
(Diag. #34) Drive Yoke Assbly
$28.67
55714
(Diag. #35) Screw- Head Spring
$2.09
55717
(Diag. #38) Bottom Plate Screw
$2.09
104153
(Diag. #39) Crankshaft
$19.76
2098560
(Diag. #40) Grease Plug
$2.46
104362-005
(Diag. #41) Crankshaft Bushing Assembly
$44.39
104460-005
(Diag. #42) Tension Plate Assembly
$14.97
42106-005
(Diag. #43) Screw- Tension Plate
$1.04
42139-005
(Diag. #44) Screw- Head to Motor
$1.04
55634
(Diag. #45) Spring Blade - Requires 3 per side
$1.04
55676
(Diag. #46) Rivet
$1.70
41861-010
(Diag. #47) Rivet Washer
$1.70
55713
(Diag. #48) Yoke
$20.50
45578
(Diag. #50) Oil Slinger
$2.37
192926
(Diag. #51) Complete motor assembly Variable Speed (No Head) *See Note
$257.59
78511-026
(Diag. #52) Bottom Blade - 84AU Standard
$20.24
1511-06
(Diag. #52) Bottom Blade - E8 Fine
$31.50
78511-126
(Diag. #52) Combo Set 83/84 AU (Top and Bottom)
$34.29
78150-513
(Diag. #52) Complete Head Assembly with Blades
$205.23
OS-005
(Diag. #52) Crankshaft Bushing Needle Bearing
$10.25
