Replacement Parts for Oster 510/610 Old Style Clipper (Smooth Housing) (Old 510/610)

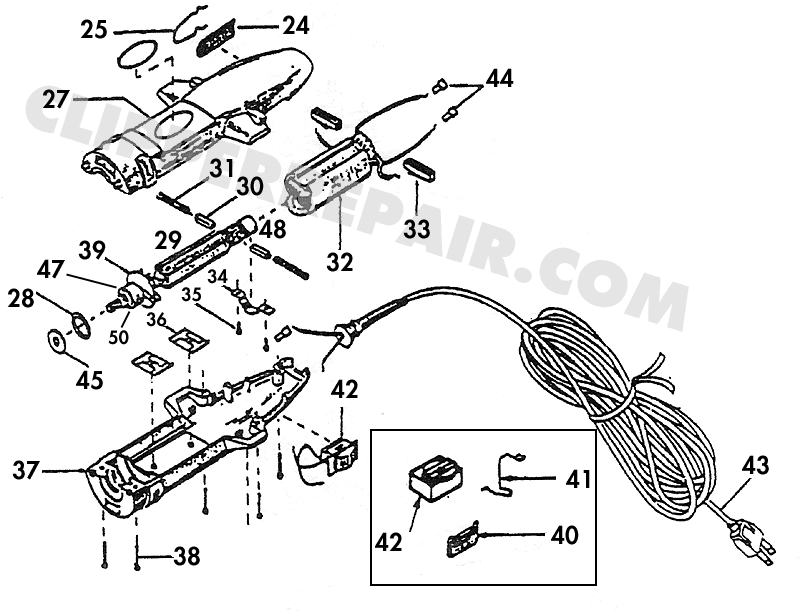

Oster 510/610 Old Style Clipper (Smooth Housing) diagram 1 of 2
42106-005
(Diag. #2) Screw- Tension Plate
$1.04
104460-005
(Diag. #3) Tension Plate Assembly
$14.97
55714
(Diag. #4) Screw- Head Spring
$2.09
42139-005
(Diag. #6) Screw- Head to Motor
$1.04
55702
(Diag. #7) Crankshaft Block
$1.83
55717
(Diag. #8) Bottom Plate Screw
$2.09
55703
(Diag. #11) Spacer Washer- Head Spring
$1.83
55712-005
(Diag. #12) Drive Yoke Assbly
$28.67
44921
(Diag. #13) Crankshaft
$41.48
55698
(Diag. #14) Crankshaft Bushing
$25.62
44910
(Diag. #15) Crankshaft Gear
$19.68
42883
(Diag. #16) Intermediate Gear Assbly
$32.51
44911
(Diag. #17) Gear Case Cover
$7.56
44915
(Diag. #18) Screw- Gear Case Cover
$1.04
44993
(Diag. #19) Gear Insulator
$2.61
55634
(Diag. #20) Spring Blade - Requires 3 per side
$1.04
55676
(Diag. #21) Rivet
$1.70
41861-010
(Diag. #22) Rivet Washer
$1.70
55713
(Diag. #23) Yoke
$20.50
45538
(Diag. #24) Screen
$1.04
42899
(Diag. #25) Retaining Clip
$2.61
421888
(Diag. #27) Upper Housing - 610 Gold
Out of Stock
42884
(Diag. #27) Upper Housing-510 Black
Out of Stock
42891
(Diag. #28) O-Ring for Bearing
$1.04
8018E
(Diag. #29) Armature Assembly w/Exchange- No Bearings
$185.85
8018
(Diag. #29) Armature Assembly wo/Exchange- No Bearings
$199.50
42435
(Diag. #30) Brush
$3.14
42894
(Diag. #31) Brush Spring
$1.04
42874E
(Diag. #32) Field Assbly w/Exchange
$115.50
42874
(Diag. #32) Field Assbly w/o Exchange
$133.35
58379
(Diag. #33) Brush Tube
$2.61
42892
(Diag. #34) Bearing Retainer
$1.04
42186
(Diag. #35) Screw- Bearing Retainer
$1.04
42897
(Diag. #36) Field Spring
$1.56
42189
(Diag. #37) Lower Housing - 610 Gold
$40.95
42888
(Diag. #37) Lower Housing-510 Black
$40.95
42109
(Diag. #38) Screw- Housing
$1.04
58017
(Diag. #39) Armature Fan
$6.28
55721
(Diag. #40) Switch Cover-610 Gold Clipper
$2.33
55723
(Diag. #41) Retaining Clip-610 Gold Clipper
$5.08
55683
(Diag. #42) Slide Switch-510 Clipper
$22.29
55728
(Diag. #42) Vari.Spd. Switch-610 Gold Clipper
$28.60
110735
(Diag. #43) Cord Set
$20.73
55136
(Diag. #44) Connector- Cord
$0.32
45591
(Diag. #45) Washer- Rubber Sealing
$1.04
42889
(Diag. #47) Front Armature Bearing
$21.86
42890
(Diag. #48) Rear Armature Bearing
$21.86
55690-001
(Diag. #49) Shaft Bushing
$1.04
193927
(Diag. #50) Complete motor assembly 1 Speed (No Head)
Out of Stock
45578
(Diag. #50) Oil Slinger
$2.37
78511-026
(Diag. #51) Bottom Blade - 84AU Standard
$20.24
1511-06
(Diag. #51) Bottom Blade - E8 Fine
$31.50
78511-140
(Diag. #51) Bottom Blade - Full Tooth Plucking
$72.45
78511-046
(Diag. #51) Bottom Blade - Skip Tooth Plucking
$69.61
78511-036
(Diag. #51) Bottom Blade - Surgical
$33.65
78511-126
(Diag. #51) Combo Set 83/84 AU (Top and Bottom)
$34.29
78150-513
(Diag. #51) Complete Head Assembly with Blades
$205.23
