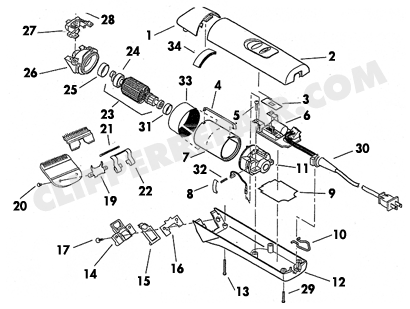

Replacement Parts for Andis (AGC2) 2 Speed Professional Animal Clipper (22340)
22340-02A
(Diag. #2) Housing - Upper (Black) Still Available
$15.23
21063
(Diag. #3) Insulator- Switch
$0.50
27198
(Diag. #4) Motor Frame Clip
$0.44
65828
(Diag. #5) Screw- Switch Assbly.
$0.34
22681
(Diag. #6) Switch & Circuit Board Assbly
$21.40
22453
(Diag. #7) Field Assembly
$36.50
65805
(Diag. #8) Brush Retaining Clip
$0.44
22267
(Diag. #10) Hanger Bail
$0.57
25061
(Diag. #10) Hanger Bail - ( Before 7/3/03)
$0.59
64945
(Diag. #11) Rear Motor Frame
$6.28
22340-12
(Diag. #12) Housing - Lower (Black) - Still Available
$6.62
64606
(Diag. #13) Front Housing Screw (Long)
$0.36
S63897
(Diag. #14) Hinge Assembly
$22.05
64537
(Diag. #15) Blade Lock / Latch
$1.76
64535
(Diag. #16) Lock Keeper
$1.39
27864
(Diag. #17) Blade Hinge Screw
$0.34
27847
(Diag. #18) Brush with shunt
$2.61
64003
(Diag. #19) Blade Bracket / Socket
$1.85
64139
(Diag. #20) Screw - Blade (2 Required)
$0.69
64027
(Diag. #21) Guide - Blade
$0.25
64013
(Diag. #22) Tension Spring
$1.47
21068
(Diag. #25) Bearing Cup - Large
$0.34
65013
(Diag. #26) Front Motor Frame
$10.35
15766
(Diag. #28) Blade Drive Screw
$0.34
22086
(Diag. #29) Rear Mounting Screw (Short)
$0.48
64250
(Diag. #30) Cord Set (14Ft.)
$18.06
21067
(Diag. #31) Small Bearing Cup
$0.34
65806
(Diag. #32) Brush Spring
$0.29
60083
(Diag. #33) Oil Seal
$0.96
17091
(Diag. #34) Self-Adhesive Foam Pad - Drive Cap
$0.95
53009
(Diag. #35) Switch Button (Not Shown)
$1.41
64794
(Diag. #36) Switch Button Lock (Not Shown)
$0.80
65057
(Diag. #37) Retainer - Switch Button (Not Shown)
$1.73
200189
(Diag. #38) Screw - Switch Button Retainer
$0.34
