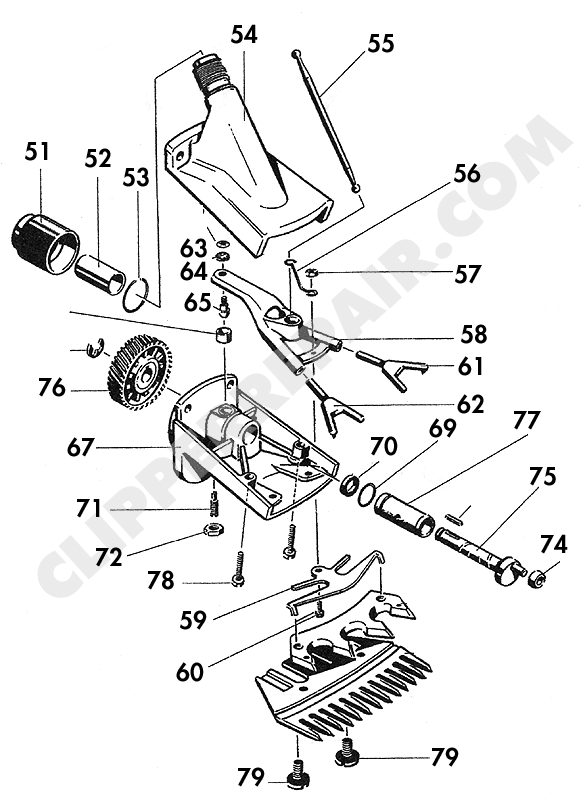

Replacement Parts for Aesculap GT394 Shear (GT394)
374-01
(Diag. #1) Motor Housing
$54.81
374-02
(Diag. #2) Threaded ring
$8.51
374-03
(Diag. #3) Motor cowl
$17.01
374-04
(Diag. #4) Filter cowl
$34.02
374-08
(Diag. #8) Cable Sleeve
$7.18
374-09
(Diag. #9) Armature complete
$199.50
374-11
(Diag. #11) On/Off Slider - Switch Button
$4.73
374-12
(Diag. #12) On/Off slider screw
$3.59
374-13
(Diag. #13) Head screw
$0.95
374-15
(Diag. #15) Bearing shell
$24.57
374-16
(Diag. #16) Platen complete
$122.85
374-18
(Diag. #18) Cord Sleeve
$7.18
374-19
(Diag. #19) Brush Holder
$12.34
374-20
(Diag. #20) Brush
$13.94
374-21
(Diag. #21) Aesculap magnet frame
$73.71
374-23
(Diag. #23) Baffle
$2.84
374-24
(Diag. #24) Radial Spring
$2.46
374-26
(Diag. #26) Switch lever
$5.99
374-27
(Diag. #27) Cable clamp
$1.80
374-29
(Diag. #29) Sliding Switch
$33.16
474-51
(Diag. #51) Regulating Nut
$22.21
474-52
(Diag. #52) Thrust Bearing Sleeve
$27.97
474-53
(Diag. #53) Spring Ring
$6.35
474-54
(Diag. #54) Housing Cover
$103.95
474-55
(Diag. #55) Pressure Rod
$34.55
474-56
(Diag. #56) Eye Spring
$2.84
474-57
(Diag. #57) Nut for Retaining Spring
$0.71
474-58
(Diag. #58) Fork
$160.65
474-59
(Diag. #59) Retaining Spring
$11.21
474-60
(Diag. #60) Screw for Retaining Spring
$0.57
474-61
(Diag. #61) Yoke - Left
$45.36
474-62
(Diag. #62) Yoke - Right
$45.36
474-63
(Diag. #63) Nut
$0.57
474-64
(Diag. #64) Tooth Lock Washer
$0.95
474-65
(Diag. #65) Fulcrum Pin
$34.26
474-66
(Diag. #66) Bearing Bush for Oscillating
$15.12
474-67
(Diag. #67) Lower Housing Section Assembly
$151.20
474-69
(Diag. #69) O ring - Rear Shaft Bushing
$1.13
474-70
(Diag. #70) Felt Ring- Rear Shaft Bushing
$1.42
474-71
(Diag. #71) Grub Screw
$1.51
474-72
(Diag. #72) Hexagonal Nut
$0.57
474-74
(Diag. #74) Crank Roller
$10.34
474-75
(Diag. #75) Eccentric
$22.68
474-76
(Diag. #76) Spur Wheel With Shaft
$49.14
474-77
(Diag. #77) Shaft Bushing
$35.91
474-78
(Diag. #78) Cylinder Screw
$0.71
474-79
(Diag. #79) Screw for Blade
$2.42
474-80
(Diag. #80) Blade Screwdriver
$15.12
