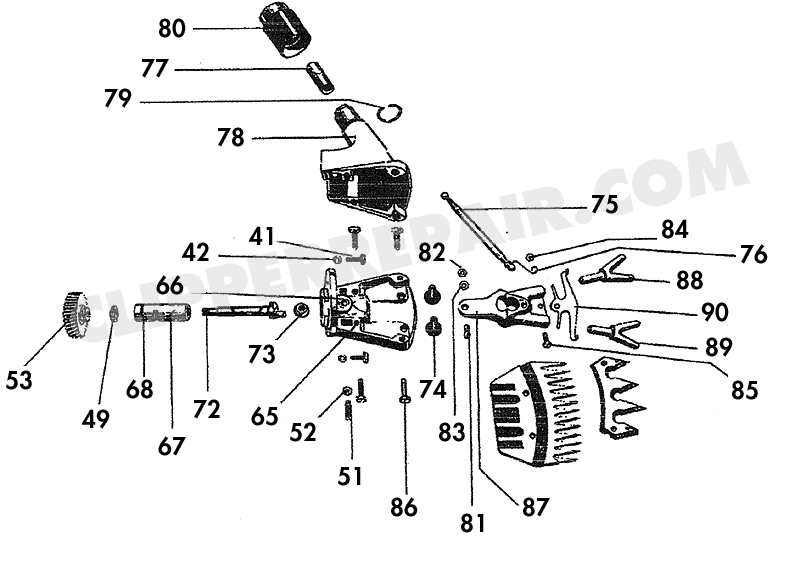

Replacement Parts for Aesculap GT292 Shear (GT292)
272-00
Casing Complete
$83.16
272-01
(Diag. #1) Casing - top part
$43.47
272-02
(Diag. #2) Casing - bottom part
$37.80
272-03
(Diag. #3) casing - back part
$9.45
272-04
(Diag. #4) On-Off Slider
$1.70
272-05
(Diag. #5) Connecting Rod
$2.36
272-06
(Diag. #6) Screw
$0.57
272-07
(Diag. #7) Air Filter w/screw
$11.25
272-08
(Diag. #8) Screw for Air Filter
$1.70
272-09
(Diag. #9) Spacer for Air Filter
$0.57
272-10
(Diag. #10) Screw for Casing
$1.23
272-12
(Diag. #12) Radio Suppressor
$12.76
272-14
(Diag. #14) Plug Contact
$1.23
272-15
(Diag. #15) Armature
$264.60
272-16
(Diag. #16) O Ring
$1.70
272-17
(Diag. #17) Ball Bearing for Fan
$17.01
272-18
(Diag. #18) Ball Bearing on Collector
$12.86
272-19
(Diag. #19) Brush
$8.35
272-20
(Diag. #20) Brush Guide
$4.62
272-21
(Diag. #21) Brush Cap
$7.09
272-22
(Diag. #22) Cable Protector Sleeve
$9.07
272-23
(Diag. #23) Cable Clip
$1.80
272-24
(Diag. #24) Screw for Cable Clip
$0.57
272-25
(Diag. #25) Electrical Cord
$41.48
272-26
(Diag. #26) Axle
$43.47
272-27
(Diag. #27) Pinion
$60.48
272-28
(Diag. #28) Disk
$3.78
272-29
(Diag. #29) Bearing Angle
$3.78
272-30
(Diag. #30) Switch
$24.57
272-31
(Diag. #31) Switch Holder
$2.08
272-32
(Diag. #32) Screw
$0.57
272-33
(Diag. #33) Nut
$10.40
272-34
(Diag. #34) Fan
$9.17
272-41
(Diag. #41) Screw
$0.57
272-42
(Diag. #42) Spring Ring
Out of Stock
272-65
(Diag. #65) Cutterhead Housing
$160.65
272-66
(Diag. #66) Fork Seat
$15.12
272-67
(Diag. #67) Crankshaft Bush
$113.40
272-68
(Diag. #68) O-Ring
$1.13
272-72
(Diag. #72) Crankshaft
$100.17
272-73
(Diag. #73) Crank Roller
$10.34
272-74
(Diag. #74) Locking Screw
$1.80
272-75
(Diag. #75) Pressing Rod
$34.55
272-76
(Diag. #76) Spring
$1.70
272-77
(Diag. #77) Thrusht Bearing Sleeve
$27.97
272-78
(Diag. #78) Cover for Housing
$52.92
272-79
(Diag. #79) Spring Ring
$4.73
272-80
(Diag. #80) Regulating Nut
$22.21
272-81
(Diag. #81) Fork Assembly Bolt
$34.26
272-82
(Diag. #82) Hex Nut
$0.57
272-83
(Diag. #83) Toothed Disk
$0.40
272-84
(Diag. #84) Hex Nut
$0.57
272-85
(Diag. #85) Screw
$0.57
272-86
(Diag. #86) Screw
$0.57
272-87
(Diag. #87) Fork Assembly
$160.65
272-88
(Diag. #88) Yoke left
$54.81
272-89
(Diag. #89) Yoke Right
$54.81
272-90
(Diag. #90) Retaining Spring
$11.34
