Replacement Parts for Aesculap GT 474 Clipper (GT474)
474-01
(Diag. #1) Motor Housing
$53.16
474-02
(Diag. #2) Nut
$1.70
474-03
(Diag. #3) Motor Cowl
$17.96
474-04
(Diag. #4) Air Filter
$5.48
474-07
(Diag. #7) Retaining Screw
$0.95
474-08
(Diag. #8) Cable Sleeve
$7.18
474-09
(Diag. #9) Armature
$255.15
474-10
(Diag. #10) Fan
$6.62
474-11
(Diag. #11) Ball Bearing on Fan
$17.01
474-12
(Diag. #12) Ball Bearing on Collector
$17.01
474-13
(Diag. #13) Screw
$0.95
474-14
(Diag. #14) Sliding Switch
$2.84
474-15
(Diag. #15) Bearing Shell
$22.68
474-16
(Diag. #16) Circuit Board, Complete
$98.28
474-17
(Diag. #17) Automatic Safety Fuse
$35.91
474-18
(Diag. #18) Joint Cable
$4.73
474-19
(Diag. #19) Carbon Bush Holder
$12.38
474-20
(Diag. #20) Carbon with Wire
$13.94
474-21
(Diag. #21) Magnet Frame
$73.71
474-22
(Diag. #22) Bearing Insert
$5.67
474-23
(Diag. #23) Air Baffle
$2.84
474-25
(Diag. #25) Electrical Cord with Plug
$41.74
474-26
(Diag. #26) Angled Slide
$6.15
474-27
(Diag. #27) Cable Clip
$1.80
474-28
(Diag. #28) Raised Head Screw
$0.57
474-29
(Diag. #29) Sliding Switch
$33.16

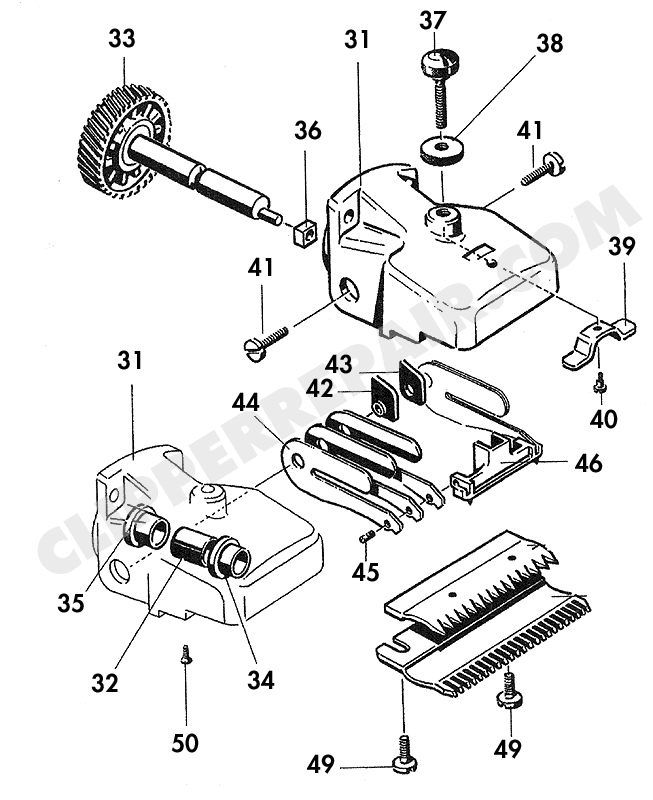

474-31
(Diag. #31) Cutter Head Housing
$179.55
474-32
(Diag. #32) Central Bushing
$14.18
474-33
(Diag. #33) Spur Wheel with Shaft
$49.25
474-34
(Diag. #34) Front Bushing
$10.64
474-35
(Diag. #35) Rear bushing
$10.82
474-36
(Diag. #36) Oscillator Block
$5.58
474-37
(Diag. #37) Regulating Screw
$10.50
474-38
(Diag. #38) Knurled Nut
$11.00
474-39
(Diag. #39) Spring Bridge
$9.59
474-40
(Diag. #40) Cylinder Screw
$5.58
474-41
(Diag. #41) Screw- Head Spring
$5.36
474-42
(Diag. #42) Left Spacer
$7.37
474-43
(Diag. #43) Right Spacer
$7.37
474-44
(Diag. #44) Oscillator Spring (6 Required)
$4.73
474-45
(Diag. #45) Oscillator Screw
$3.68
474-46
(Diag. #46) Oscillator / Yoke (No springs attached)
$63.84
474-49
(Diag. #49) Blade Screw
$12.38
474-50
(Diag. #50) Countersunk Screw
$0.89
